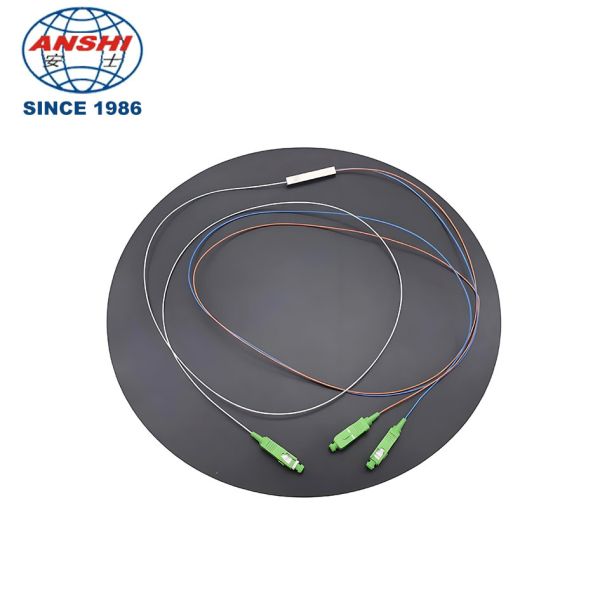

1x2 SC/APC PLC Fiber Optic Splitter for FTTH Networks with Compact Design

Name: 1x2 SCAPC PLC Fiber Optic Splitter for FTTH Networks with Compact Design
Brand: ANSHI
Price: 2 USD

Quality 1x2 SC/APC PLC Fiber Optic Splitter for FTTH Networks with Compact Design for sale

Brand Name : ANSHI

Model Number : AS-ODF-1X16FLP

Certification : ISO9001, SGS

Place of Origin : China

MOQ : 10 Pieces

Price : $2~$5

Payment Terms : L/C,D/P,D/A,MoneyGram,Western Union,T/T

Supply Ability : 2000 pcs/day

Delivery Time : 10000pcs/week

name : 1X2 optic plc splitter

connector type : SC/APC

Wavelength : 1310nm/1490nm/ 1550nm

Application : CATV/FTTH/LAN/PON

Contact Now

ANSHI Fiber Optic Splitter SC/APC 1x2 PLC Optical Fiber Splitter

Product Overview

1x2 SC/APC PLC FTTH Fiber Optic Splitter - Single Mode Optical Coupler. This PLC splitter is a quartz substrate integrated waveguide optical power distribution device featuring compact size, broad working wavelength range, high reliability, and excellent light uniformity. It is specifically designed for passive optical networks (EPON, BPON, GPON) to connect local and terminal equipment while distributing optical signals.

Construction & Design

The bare PLC splitter consists of a PLC splitter chip and input/output optical fiber arrays housed in a square metal tube, available with 0.9mm or 250μm bare fiber outputs. These fibers can be welded or processed with various types of optical fiber connectors.

Technical Specifications

Parameters	1x2	1x4	1x8	1x16	1x32	1x64
Operating Wavelength (nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40~85
Storage Temperature (℃)	-40~85
Device Dimension (mm)	4044	4044	4044	5044	5074	60124

Key Features

Continuous coverage with different fibers
Full fiber core structure
Reusable design
Optional fiber types
Low additional loss
Minimal insertion loss
Multiple configuration options (2*2, 1*2, 1*4, up to 1*128)

Applications

Optical Signal Distribution
Data Communications
LAN and CATV Systems
FTTX Deployment
FTTH Network Infrastructure
Passive Optical Networks (PON)
Measuring Systems and Laser Systems
DWDM and CWDM Systems

1x2 SC/APC PLC Fiber Optic Splitter for FTTH Networks with Compact Design

1x2 SC/APC PLC Fiber Optic Splitter for FTTH Networks with Compact Design Images
